An MgMultiLineString is a one-dimensional aggregate geometry whose elements are MgLineString geometries. More...

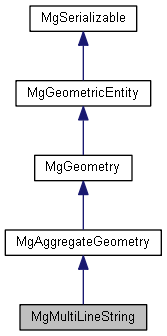

Inheritance diagram for MgMultiLineString:

Public Member Functions
virtual MgGeometricEntity *	Copy ()
virtual INT32	GetCount ()
virtual INT32	GetDimension ()

virtual INT32	GetGeometryType ()
virtual MgLineString *	GetLineString (INT32 index)

virtual bool	IsClosed ()
virtual bool	IsEmpty ()

virtual MgGeometricEntity *	Transform (MgTransform *transform)

Detailed Description

An MgMultiLineString is a one-dimensional aggregate geometry whose elements are MgLineString geometries.

Remarks:: The line strings are not connected or ordered. An instance of this class is constructed by calling a non-static MgGeometryFactory::CreateMultiLineString() method and, once constructed, is immutable.

Example (PHP)
The following code shows the construction of an MgMultiLineString geometry. Review the MgLineString example code.

 // A helper class additional to those created in the
 // MgLineString example code is needed.
 $lineStringCollection = new MgLineStringCollection();

 // After each MgLineString geometry is constructed,
 // it is added to an MgLineStringCollection.
 $index = $lineStringCollection->Add($lineString);
 echo "A line string is added to a line string collection at index: $index\n";

 // construct the MgMultiLineString geometry
 $multiLineString = $geometryFactory->CreateMultiLineString($lineStringCollection);

 // print out the Agf Text string for the geometry
 $multiLineStringAgfText = $wktReaderWriter->Write($multiLineString);
 echo "AGF Text representation of MultiLineString: $multiLineStringAgfText\n";

Example (C#)
The CreateAMultiLineStringXY method calls the CreateALineStringXY method. The code for the CreateALineStringXY method is in the MgLineString example code.

 using OSGeo.MapGuide;

 private MgWktReaderWriter wktReaderWriter;
 private MgGeometryFactory geometryFactory;
 private MgMultiLineString mlsLs0121Ls1121;
 // the data for 1 linestring
 private double[,] da0121 = { { 0, 1 }, { 2, 1 } };
 // the data for another linestring
 private double[,] da1121 = { { 1, 1 }, { 2, 1 } };
 // the data for 2 linestrings
 private double[][,] mlsLs0121Ls1121Data;
 private String geometryAgfText;

 public MgMultiLineString CreateAMultiLineStringXY(double[][,] lineStrings)
 {
     MgLineStringCollection lines = new MgLineStringCollection();
     for (int i = 0; i < lineStrings.GetLength(0); i++)
     {
         lines.Add(CreateALineStringXY(lineStrings[i]));
     }
     return geometryFactory.CreateMultiLineString(lines);
 }

 geometryFactory = new MgGeometryFactory();
 mlsLs0121Ls1121Data = new double[2][,];
 mlsLs0121Ls1121Data[0] = da0121;
 mlsLs0121Ls1121Data[1] = da1121;
 mlsLs0121Ls1121 = CreateAMultiLineStringXY(mlsLs0121Ls1121Data);

 // print out the Agf Text string for the geometry
 wktReaderWriter = new MgWktReaderWriter();
 geometryAgfText = wktReaderWriter.Write(mlsLs0121Ls1121);
 // geometryAgfText now contains:
 // "MULTILINESTRING XY ((0 1, 2 1), (1 1, 2 1))"
