The MgCoordinateSystemGeodeticInterpolationTransformDefParams parameter class requires instances of MgCoordinateSystemGeodeticTransformGridFile to be set via its SetGridFiles method. An MgCoordinateSystemGeodeticTransformGridFile object simply describes the grid file rather than containing the (grid file) information itself. More...

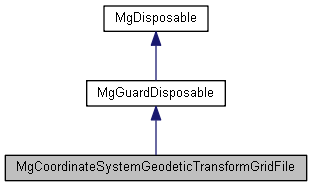

Inheritance diagram for MgCoordinateSystemGeodeticTransformGridFile:

Public Member Functions
virtual INT32	GetFileFormat ()=0
	Returns the format of the grid file as a constant value as defined in MgCoordinateSystemGeodeticTransformGridFileFormat.
virtual STRING	GetFileName ()=0
	Gets the physical file name.
virtual bool	GetIsInverseDirection ()=0
	When used within a geodetic transformation that defines a source and a target datum, this flag instructs the API whether to consider the grid file's content to be the inverse of the actual conversion direction.
virtual bool	IsProtected ()=0
	Gets whether this file is protected.
virtual bool	IsValid ()=0
	Gets whether this file is valid.
virtual void	SetFileFormat (INT32 gridFileFormat)=0
	Sets this file's format. Has to be constant as defined by MgCoordinateSystemGeodeticTransformGridFileFormat.
virtual void	SetFileName (CREFSTRING fileName)=0
	Sets the physical file name.
virtual void	SetIsInverseDirection (bool isInverseDirection)=0
	Sets the flag, whether this grid file carries the information to perform a datum transformation in the inversed direction to what's specified in the parent transformation definition.

Detailed Description

The MgCoordinateSystemGeodeticInterpolationTransformDefParams parameter class requires instances of MgCoordinateSystemGeodeticTransformGridFile to be set via its SetGridFiles method. An MgCoordinateSystemGeodeticTransformGridFile object simply describes the grid file rather than containing the (grid file) information itself.
